Anping County Zhuoda Hardware Mesh Co., Ltd. Main Product：Gabion， Reno Mattress，Gabion Box , Gabion Basket
5 Years
| Ask Lasest Price | |
| Brand Name : | Zhuoda |
| Model Number : | ZD-04 |
| Certification : | ISO9001 |
| Payment Terms : | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability : | 10000 Sets |
| Delivery Time : | 5-7days |
Galvanized Gabion Mesh Information:
Hexagonal Wire Netting Gabions are wire containers made of hexagonal wire netting. Wire diameter varies with the hexagonal nettings. For hexagonal wire netting with no pvc coating, the wire diameter ranges from 2.0mm to 4.0mm. For those PVC coated hexagonal wire netting, the outside diameter ranges from 3.0mm to 4.0mm. The wire of the outside frame edge is one wire gauge thicker than the wire used for hexagonal wire netting.
Galvanized Gabion Mesh details:
1. materials: Hot dipped galvanized wire and PVC coated galvanized
wire, Galfan coated wire
2. wire diameter: 2.0mm, 2.2mm, 2.7mm, 3.0mm,
3. selvedge wire: 2.4mm, 2.7mm, 3.4mm, 3.9mm
4. mesh size: 6*8cm, 8*10cm, 10*12cm, 12*15cm
5. lacing wire: 2.2mm, 5% of gabion weight
6. zinc coating: 225-275g/m2 according to EN 10224-2
7. size: 1x1x1m, 2X1X0.5m, 2X1X1m, 3X1X1m, 4X2X0.5m, 6X2X0.3m
8. gabion box Steel according to EN 102182, Tensile strength
between 380N/mm2 and 500N/mm2
| Woven / hexagonal wire mesh gabion basket | |
| Application | Control and guide of water or flood Strengthening structure of soil Protection engineering of seaside area |
| Material | Low carbon steel wire, Stainless steel wire, PVC coated wire |
| Surface Finish | Electro galvanized, Hot-dipped galvanized, Galfan coated, PVC coated |
| Connect Way | by Helical wire, by U post, H post |
| Material | galvanzied wire |
| Wire diameter | 2.0-4.0mm |
| Mesh Size | 60*80mm, 80*100mm, 80*120mm, 100*120mm, 100*150mm, 120*150mm |
| Surface treatment | hot-dipped galvanzied/PVC coated |
| Color | silver/green/black green |
| Application | soil, bridge construction, water bank |
| Length | Width | Height | Diaphragm | CUM | The tolerance |
| M | M | M | Unit | M3 | |
| 2 | 1 | 0.3 | 1 | 0.6 | |
| 3 | 1 | 0.3 | 2 | 0.9 | |
| 4 | 1 | 0.3 | 3 | 1.2 | length+-3% |
| 2 | 1 | 0.5 | 1 | 1 | width+-5% |
| 3 | 1 | 0.5 | 2 | 1.5 | height+-5% |
| 4 | 1 | 0.5 | 3 | 2 | |
| 1 | 1 | 0.5 | 0 | 1 | Hole size |
| 1.5 | 1 | 1 | 0 | 1.5 | 60x80mm |
| 2 | 1 | 1 | 1 | 2 | 80x100mm |
| 3 | 1 | 1 | 2 | 3 | 100x120mm |
| 4 | 1 | 1 | 3 | 4 |
Galvanized Gabion Mesh featuers:
Economic.
Simple installation.
Weather proof under natural destroy, corrosion resistant.
No collapse even under big scope of deforming.
Sludge in the stones is good for plant growing.
Good permeation can prevent the damage by hydrostatic.
Less transport freight.
Flexibility is good
Corrosion resistance
Galvanized Gabion Mesh Application:

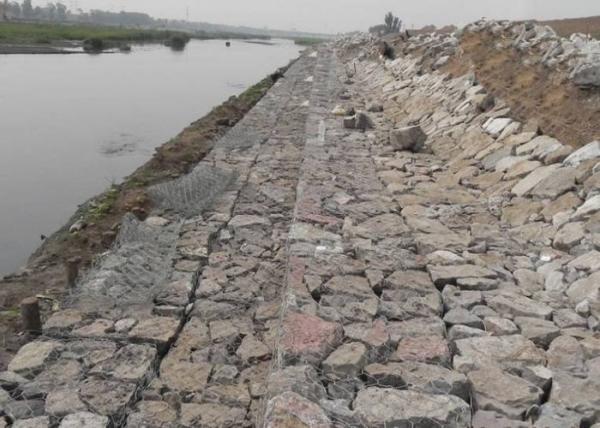

Control and guide of water or flood.
Flood bank or guiding bank.
Preventing of rock breaking.
Water and soil protection.
Bridge protection.
Strengthening structure of soil.
Protection engineering of seaside area.
Galvanized Gabion Mesh Package:
60-150sets per bundle,then wrapped with steel binding wire or plastic film if you need.we can also suppply pallet packing for convenient unloading.It according to your requirement.
|
|
