Anping County Zhuoda Hardware Mesh Co., Ltd. Main Product：Gabion， Reno Mattress，Gabion Box , Gabion Basket
5 Years
| Ask Lasest Price | |
| Brand Name : | Zhuoda |
| Model Number : | ZD-04 |
| Certification : | ISO9001 |
| Payment Terms : | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability : | 10000 Sets |
| Delivery Time : | 5-7days |

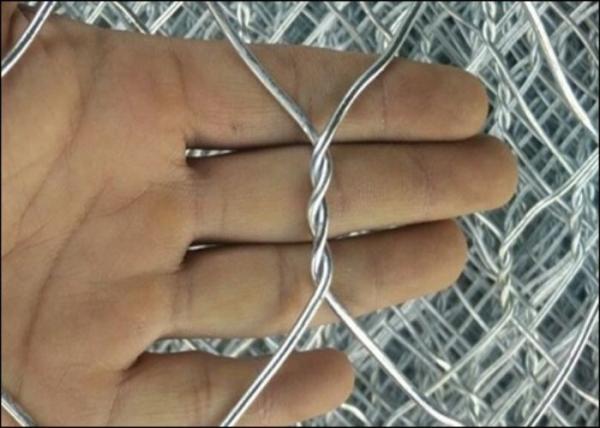

Galvanized Gabion Mesh Information:
It is made from high grade Low Carbon steel iron wire, heavy zinc coated wire, PVC coated wire though twisting and braiding by machine. as well as galfan coated units. Galfan is a high performance galvanising process using a zinc/aluminium/mischmetal alloy coating. This offers significantly greater protection than traditional zinc galvanizing. Where the product is exposed to water courses or a saline environment, we strongly recommends a polymer coated galvanized unit for improved design life.
Hot dipped galvanized wire Hot dipped galvanized wire+pvc
Galfan coating(5%AL+95%ZN)/+pvc coating
Super galfan coating()10%AL+90%ZN)/+pvc coating
Galvanized Gabion Meshspecificaiton:
| Material | galvanzied wire |
| Wire diameter | 2.0-4.0mm |
| Mesh Size | 60*80mm, 80*100mm, 80*120mm, 100*120mm, 100*150mm, 120*150mm |
| Surface treatment | hot-dipped galvanzied/PVC coated |
| Color | silver/green/black green |
| Application | soil, bridge construction, water bank |
| Length | Width | Height | Diaphragm | CUM | The tolerance |
| M | M | M | Unit | M3 | |
| 2 | 1 | 0.3 | 1 | 0.6 | |
| 3 | 1 | 0.3 | 2 | 0.9 | |
| 4 | 1 | 0.3 | 3 | 1.2 | length+-3% |
| 2 | 1 | 0.5 | 1 | 1 | width+-5% |
| 3 | 1 | 0.5 | 2 | 1.5 | height+-5% |
| 4 | 1 | 0.5 | 3 | 2 | |
| 1 | 1 | 0.5 | 0 | 1 | Hole size |
| 1.5 | 1 | 1 | 0 | 1.5 | 60x80mm |
| 2 | 1 | 1 | 1 | 2 | 80x100mm |
| 3 | 1 | 1 | 2 | 3 | 100x120mm |
| 4 | 1 | 1 | 3 | 4 |
Galvanized Gabion Mesh featuers:
Economic. Just fill the stone into the gabions and seal it.
Simple installation. No special technology needed.
Weather proof under natural destroy, corrosion resistant.
No collapse even under big scope of deforming.
Sludge in the stones is good for plant growing. Mixed to form a
integrity with the natural environment.
Good permeation can prevent the damage by hydrostatic.
Less transport freight. It can be folded together for transport and
further installation.
Flexibility is good: no structural joints, the overall structure of
scalability.
Corrosion resistance: galvanized materials are not afraid of water.
Galvanized Gabion Mesh Package:
60-150sets per bundle,then wrapped with steel binding wire or plastic film if you need.we can also suppply pallet packing for convenient unloading.It according to your requirement.
Q:Can you send me the specifications and the pictures of the gabion box?
A:Of course,after we receive an email from you,we will send the specifications and pictures ASAP.
Q:I want to check the quality of gabion,can you send me a piece of sample for free?
A:Yes,many clients ask for samples from us,and according our company rules,we supply free sample
and you pay the freight.
Q:I s your price competitive?
A:Yes,we are sure our price is not high,because we produce by ourself and in order to enlarge the market and attract more clients,we have a small profit.
Q:Can you give me a discount?
A:Our price will be depend on the quantity you want,we will low the price based on your quantity.
|
|
