Anping County Zhuoda Hardware Mesh Co., Ltd. Main Product：Gabion， Reno Mattress，Gabion Box , Gabion Basket
5 Years
| Ask Lasest Price | |
| Brand Name : | Zhuoda |
| Model Number : | ZD-04 |
| Certification : | ISO9001 |
| Payment Terms : | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability : | 10000 Sets |
| Delivery Time : | 5-7days |

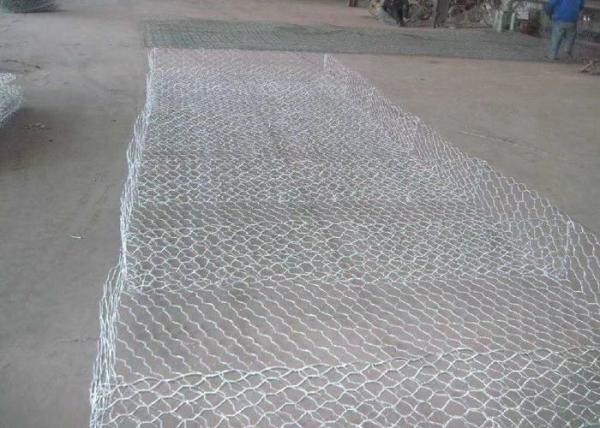

Reinforced Stone Cage Park Greening Bingge Net Plastic Coated PVC Wrapped Gabion Wire Mesh
Gabion Wire Mesh introduction:
Gabion wire mesh are made of heavy galvanized wire / ZnAl (Golfan) coated wire / PVC coated wires, the mesh shape is hexagonal style. The gabion boxes are used widely in slope protection, foundation pit suporting, mountain rock holding, river and dams scour protection.
Gabion wire mesh can be supplied in various lengths, widths and heights. In order to strengthen the boxes,all the edges of the structure shall be selvedged with wire of bigger diameter.
Hot-dipped Galvanized;Electro-galvanized;Spraying Brushing and Soaking, PVC coated wire
2. Gabion wire mesh Feature:
Strong corrosion resistance, good overall flexibility and stability. It can be used for flood control and flood control. Lead wire cage is mainly used in flood control and flood control works. Galvanized steel wire coated stone cage material: high quality low carbon steel wire, steel wire surface coated with a layer of PVC or PE protective layer, and then woven into various specifications of the stone cage network. This protective layer will greatly increase the protection of highly polluted environment and integrate it with the surrounding environment through different color choices.
| Material | Galvanized wire |
| Hot dipped galvanized (Zinc Coated) |
| Galfan coated: 95% Zinc + 5% Aluminum, 90%Zinc +10% Aluminum | |
| Zinc(galvanized) + PVC Coated (Gray or Green) |
| Gabion Basket/Gabion Box/Gabion Mesh/Gabion Cage Specification | ||||
| Wire diameter | 2.0-4.0mm | |||
| Mesh opening | 80 x 100mm | 90 x 110mm | 100 x 120mm | 60 x 80mm etc. |
| Dimension | 1x0.5x0.5m, 1x1x1m, 2x1x0.5m, 2x1x1m, 3x1x0.5m, 3x2x0.3m,
3x2x0.17m, 3x1x1m, 4x1x0.5m, 4x1x1m, 4x2x0.3m, 5x1x1m, 5x1x0.5m, 6x2x0.3m or as request | |||
| Material | galvanzied wire |
| Wire diameter | 2.0-4.0mm |
| Mesh Size | 60*80mm, 80*100mm, 80*120mm, 100*120mm, 100*150mm, 120*150mm |
| Surface treatment | hot-dipped galvanzied/PVC coated |
| Color | silver/green/black green |
| Application | soil, bridge construction, water bank |
| Specifications offered | |||||
| Length | Width | Height | Diaphragm | CUM | The tolerance |
| M | M | M | Unit | M3 | |
| 2 | 1 | 0.3 | 1 | 0.6 | |
| 3 | 1 | 0.3 | 2 | 0.9 | |
| 4 | 1 | 0.3 | 3 | 1.2 | length+-3% |
| 2 | 1 | 0.5 | 1 | 1 | width+-5% |
| 3 | 1 | 0.5 | 2 | 1.5 | height+-5% |
| 4 | 1 | 0.5 | 3 | 2 | |
| 1 | 1 | 0.5 | 0 | 1 | Hole size |
| 1.5 | 1 | 1 | 0 | 1.5 | 60x80mm |
| 2 | 1 | 1 | 1 | 2 | 80x100mm |
| 3 | 1 | 1 | 2 | 3 | 100x120mm |
| 4 | 1 | 1 | 3 | 4 | |
Gabion Wire Mesh Application:
Gabion wire mesh, with its good corrosion resistance and oxidation resistance,
serves well as cage for livestock, protection for sports field and runway, and temperature keeping
materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in
construction, the petroleum industry, the chemical industry, breeding, garden and food processing
industries.
Gabion Wire Mesh Package:
1) Outside with plastic film
2) In bundle
3) As per customer's special request
|
|
