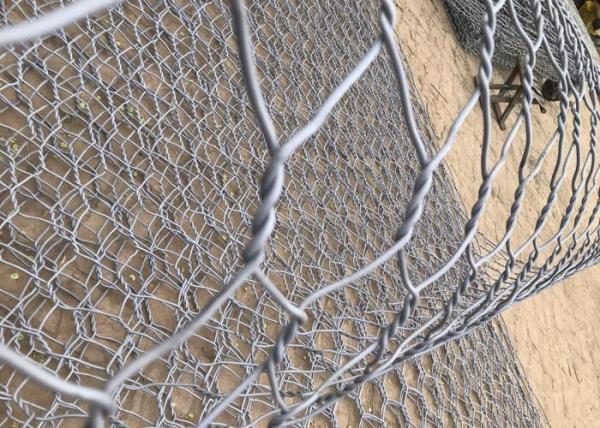

Underwater Seawal Protect Zinc Coated Gabion Box Woven Gabion Wire
Mesh
Gabion Wire Mesh introduction:
Gabion box wire Mesh especially widely used in foreign countries, and is mainly used to park landscape modelling, exterior walls, business outsourcing of the building.Example: shell office building external wall decoration in the United States, domestic now is mainly used in urban landscape, landscape park.Welded wire gabion is simple in construction and beautiful structure, low cost, easy to install, garden decoration, is the ideal choice for slope protection greening
Gabion Wire Mesh Material:
Hot dipped galvanized wire
Hot dipped galvanized wire+pvc
Galfan coating(5%AL+95%ZN)/+pvc coating
Super galfan coating()10%AL+90%ZN)/+pvc coating
| GABION WIRE MESH | |||
| Opening (mm) | Wire Diameter (mm) | Strands | Sizes |
| 60 x 80 | 2.0-2.8 | 3 | 2m x 1m x 1m, 3m x 1m x 1m, 4m x 1m x 1m, 2m x 1m x 0.5m, 4m x 1m x 0.5m, Or as request |
| 80 x 100 | 2.0-3.2 | 3 | |
| 80 x 120 | 2.0-3.2 | 3 | |
| 100 x 120 | 2.0-3.4 | 3 | |
| 100 x 150 | 2.0-3.4 | 3 | |
| 120 x 150 | 2.0-4.0 | 3 | |
| Hot dip galvanized gabion box | ||
| Size(m) | Mesh size(cm) | Diameter(mm) selvage wire/mesh wire/tie wire |
2x1x1 2x1x0.5 | 8x10 10x12 | 3.4/2.7/2.2 3.9/3.0/2.2 3.9/2.7/2.2 |
3x1x1 3x1x0.5 | ||
| 4x1x1 | ||
| PVC coated gabion box | |||
| Size(m) | Mesh size(cm) | Before PVC Diameter(mm) selvage wire/mesh wire/tie wire | After PVC Diameter(mm) selvage wire/main wire/tie wire |
2x1x1 2x1x0.5 | 8x10 10x12 | 3.4/2.7/2.2 | 4.4/3.7/3.2 |
Gabion Wire Mesh advantages:
1. Great Perviousness, pliability and anti-corrosion.
2. Resist the scour
3. Holistic capability
4. Easy to Construct
5. Economical and environmental protection
Gabion Wire Mesh Application:
Gabion Box with rock at the project site to form flexible, permeable, monolithic structures to promote rapid growth of natural vegetation. The base section of the Gabion box is divided into compartments and filled with stones at the project site. With lids secured, Gabion box form flexible, permeable, monolithic structures.
Gabion Wire Mesh Package:
1.With plastic weaving bags outside
2.With wooden pallet cloth
3.Less transport freight. It can be folded together for transport
and further installation.
|
|
