2.7mm 3.05mm Mesh Wire Gabion Box 8x10cm High Zinc Coated Galvanized Gabion Mesh
Galvanized Gabion Mesh Information:

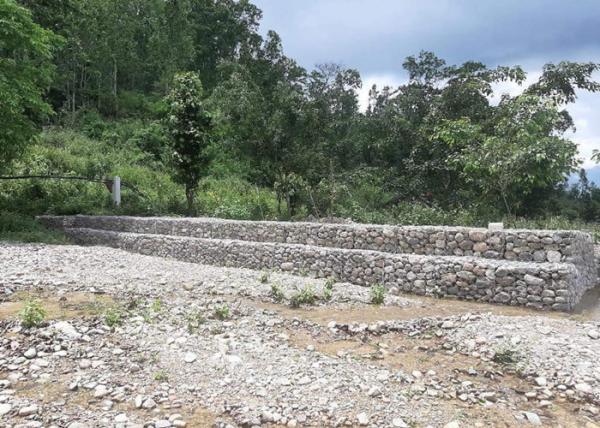

Gabion baskets are made of heavy galvanized wire / ZnAl (Golfan) coated wire / PVC or PE coated wires, the mesh shape is hexagonal style. The gabion baskets are used widely in slope protection, foundation pit supporting, mountain rock holding, river and dams scour protection
We design and supply china gabion box made of heavy hexagonal wire
nettings.
Wire Materials: Quality Galvanized Wire, Galfan Wire etc.
Sizes: 1x1x0.5m,1x1x1m, 2x1x0.5m, 2x1x1m, 3x1x1m, 3x1x0.5m, 4x1x0.5m,
4x1x1m, 6x2x0.3m,Custom orders available.
Mesh Size: 60*80mm, 80*100mm,100*120mm, 120*150mmCustom orders available.
Surface Treatment: Finish can be hot-dipped galvanized, galvanized aluminum alloy or
PVC coated, etc.
Weaving Patterns: Straight Twist; Reverse Twist;Double Twist; Electro Galvanized before or after Weaving;Hot-dipped Galvanized before or after Weaving;
Application: Control and guide of water or flood, Preventing of rock breaking, Rock fall protection, Water and soil protection, Bridge protection
Featuers:Strong structure and corrosion-resistance to protect the dam and riverbank
Package:1. compacted before packaging. 2. Plastic packaging outside and on the pallet. 3. 20'container can contain more than 8,000 square meters. 4.40' container can contain more than 15,000 square meters
Specification:
| Woven / hexagonal wire mesh gabion basket | |
| Application | Control and guide of water or flood Strengthening structure of soil Protection engineering of seaside area |
| Material | Low carbon steel wire, Stainless steel wire, PVC coated wire |
| Surface Finish | Electro galvanized, Hot-dipped galvanized, Galfan coated, PVC coated |
| Connect Way | by Helical wire, by U post, H post |
| Material | galvanzied wire |
| Wire diameter | 2.0-4.0mm |
| Mesh Size | 60*80mm, 80*100mm, 80*120mm, 100*120mm, 100*150mm, 120*150mm |
| Surface treatment | hot-dipped galvanzied/PVC coated |
| Color | silver/green/black green |
| Application | soil, bridge construction, water bank |
| Length | Width | Height | Diaphragm | CUM | The tolerance |
| M | M | M | Unit | M3 | |
| 2 | 1 | 0.3 | 1 | 0.6 | |
| 3 | 1 | 0.3 | 2 | 0.9 | |
| 4 | 1 | 0.3 | 3 | 1.2 | length+-3% |
| 2 | 1 | 0.5 | 1 | 1 | width+-5% |
| 3 | 1 | 0.5 | 2 | 1.5 | height+-5% |
| 4 | 1 | 0.5 | 3 | 2 | |
| 1 | 1 | 0.5 | 0 | 1 | Hole size |
| 1.5 | 1 | 1 | 0 | 1.5 | 60x80mm |
| 2 | 1 | 1 | 1 | 2 | 80x100mm |
| 3 | 1 | 1 | 2 | 3 | 100x120mm |
| 4 | 1 | 1 | 3 | 4 |
|
|
