Garden Retaining Wall Gabion Stone Cage Box PVC Coated Gabion Box
PVC Coated Gabion Box introduction:
Gabion Mesh are made of double - twisted hexagonal wire mesh. To
fill with stones at the river bank or seaside to stop flood, on the
mountain prevent rock falling.
1. Gabion box materials: Hot dipped galvanized wire and PVC coated
galvanized wire, Galfan coated wire
2. Gabion box mesh wire: 2.0mm, 2.2mm, 2.7mm, 3.0mm,
3. Gabion box selvage wire: 2.4mm, 2.7mm, 3.4mm, 3.9mm
4. Gabion box mesh size: 6*8cm, 8*10cm, 10*12cm, 12*15cm
5. Gabion box lacing wire: 2.2mm, 5% of gabion weight
6. Gabion box Zinc coating: 225-275g/m2 according to EN 10224-2
7. Gabion box size: 1x1x1m, 2X1X0.5m, 2X1X1m, 3X1X1m, 4X2X0.5m,
6X2X0.3m
8. Gabion box Steel according to EN 102182, Tensile strength
between 380N/mm2 and 500N/mm2
| Material | Galvanized wire |
| Hot dipped galvanized (Zinc Coated) |
| Galfan coated: 95% Zinc + 5% Aluminum, 90%Zinc +10% Aluminum | |
| Zinc(galvanized) + PVC Coated (Gray or Green) |
| Gabion Basket/Gabion Box/Gabion Mesh/Gabion Cage Specification | ||||
| Wire diameter | 2.0-4.0mm | |||
| Mesh opening | 80 x 100mm | 90 x 110mm | 100 x 120mm | 60 x 80mm etc. |
| Dimension | 1x0.5x0.5m, 1x1x1m, 2x1x0.5m, 2x1x1m, 3x1x0.5m, 3x2x0.3m,
3x2x0.17m, 3x1x1m, 4x1x0.5m, 4x1x1m, 4x2x0.3m, 5x1x1m, 5x1x0.5m, 6x2x0.3m or as request | |||
| Material | galvanzied wire |
| Wire diameter | 2.0-4.0mm |
| Mesh Size | 60*80mm, 80*100mm, 80*120mm, 100*120mm, 100*150mm, 120*150mm |
| Surface treatment | hot-dipped galvanzied/PVC coated |
| Color | silver/green/black green |
| Application | soil, bridge construction, water bank |
| Specifications offered | |||||
| Length | Width | Height | Diaphragm | CUM | The tolerance |
| M | M | M | Unit | M3 | |
| 2 | 1 | 0.3 | 1 | 0.6 | |
| 3 | 1 | 0.3 | 2 | 0.9 | |
| 4 | 1 | 0.3 | 3 | 1.2 | length+-3% |
| 2 | 1 | 0.5 | 1 | 1 | width+-5% |
| 3 | 1 | 0.5 | 2 | 1.5 | height+-5% |
| 4 | 1 | 0.5 | 3 | 2 | |
| 1 | 1 | 0.5 | 0 | 1 | Hole size |
| 1.5 | 1 | 1 | 0 | 1.5 | 60x80mm |
| 2 | 1 | 1 | 1 | 2 | 80x100mm |
| 3 | 1 | 1 | 2 | 3 | 100x120mm |
| 4 | 1 | 1 | 3 | 4 | |
PVC Coated Gabion Box advantages:
Strong structure and corrosion-resistance to protect the dam and
riverbank

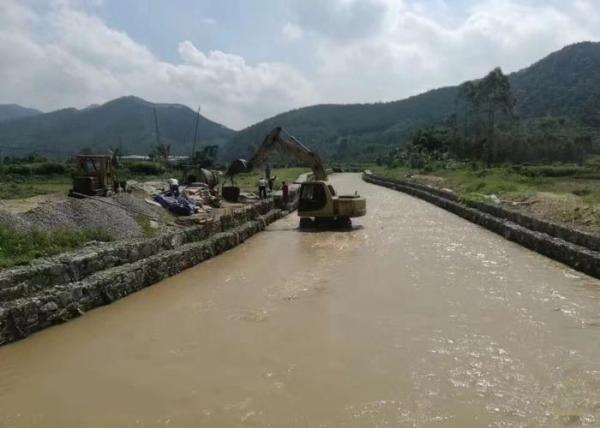

PVC Coated Gabion Box Application:
Control and guide of water or flood
Preventing of rock breaking
Rock fall protection
Water and soil protection
Bridge protection
PVC Coated Gabion Box Package:
|
|
